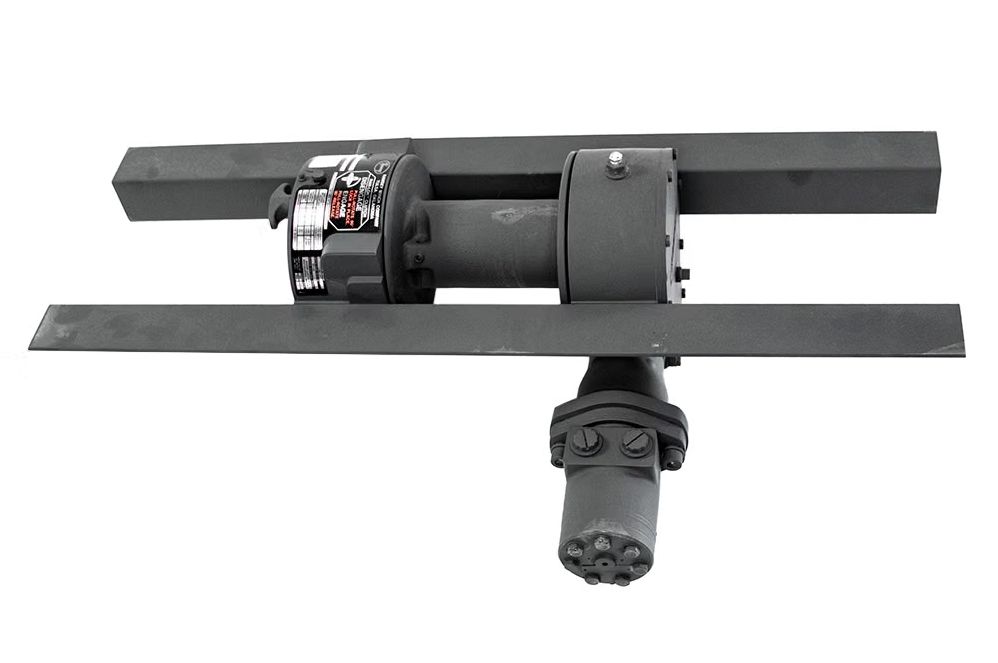

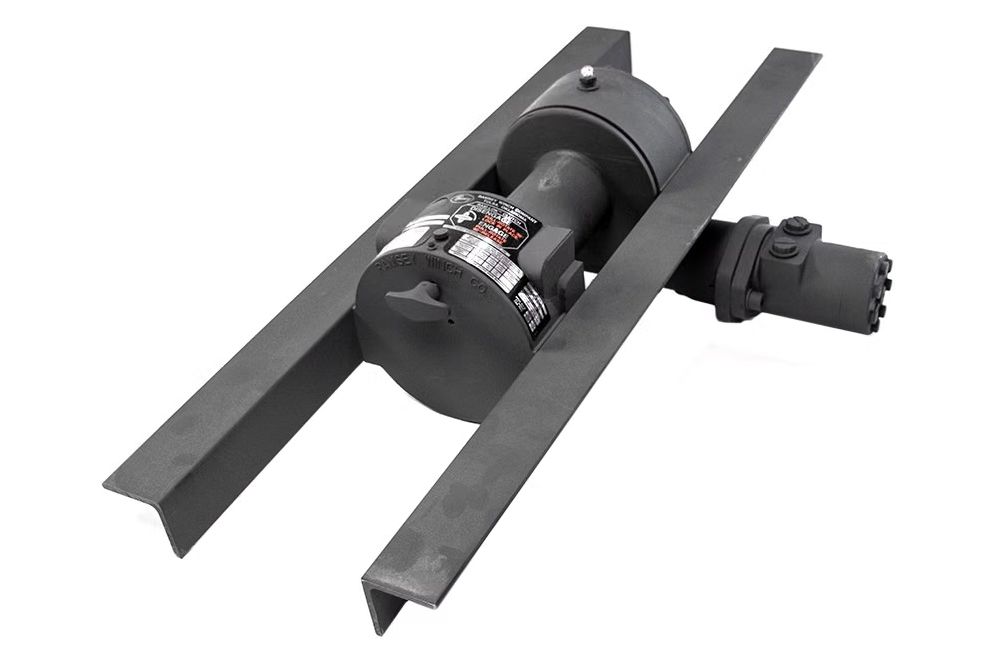

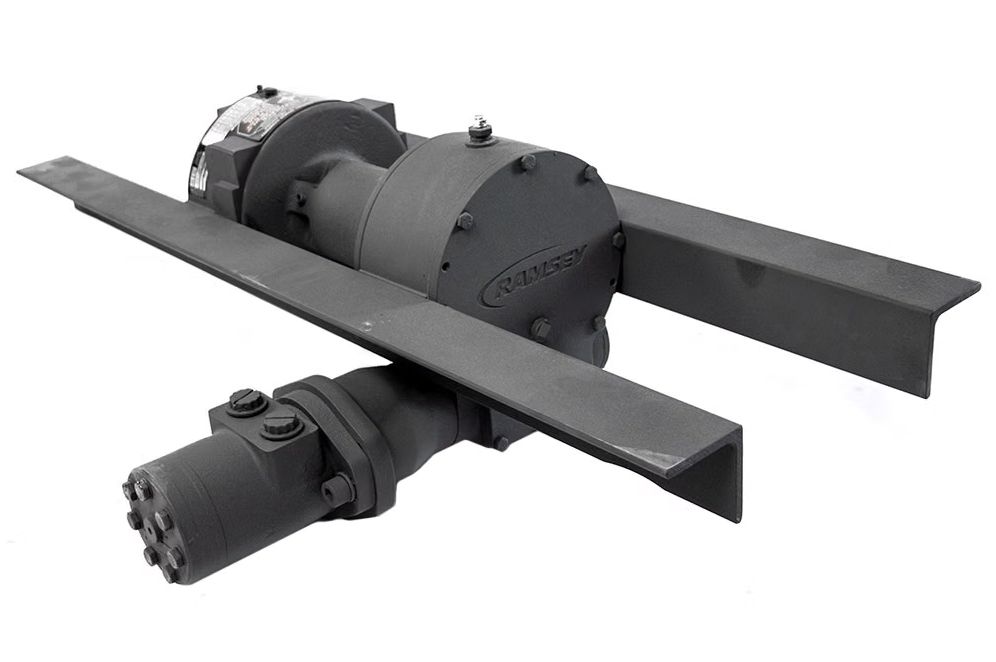

Rugged worm gearing results in faster line speeds that get you to your next job faster. These 8,000- and 10,000-lb. Hydraulic Industrial-Grade Winches allow you to operate from driver side of truck and feature Ram-Lok clutch, which provides easy freespooling. Low mount in your truck bed with L-shaped mounting channels. Spool direction is counterclockwise (over the drum) rotation. Retracted height is 1,800 psi. Options: Series H234 features 3/8" x 140' wire rope capacity and passenger side mount. Series H246Y features 3/8" x 75' wire rope capacity and passenger side mount. Series H246 features 3/8" x 140' wire rope capacity and passenger side or driver side mount.
- Ramsey Part Number: 124006
- Model: HY-246R
- Line Pull: 8,000 lbs
- Clutch: Ram-Lok

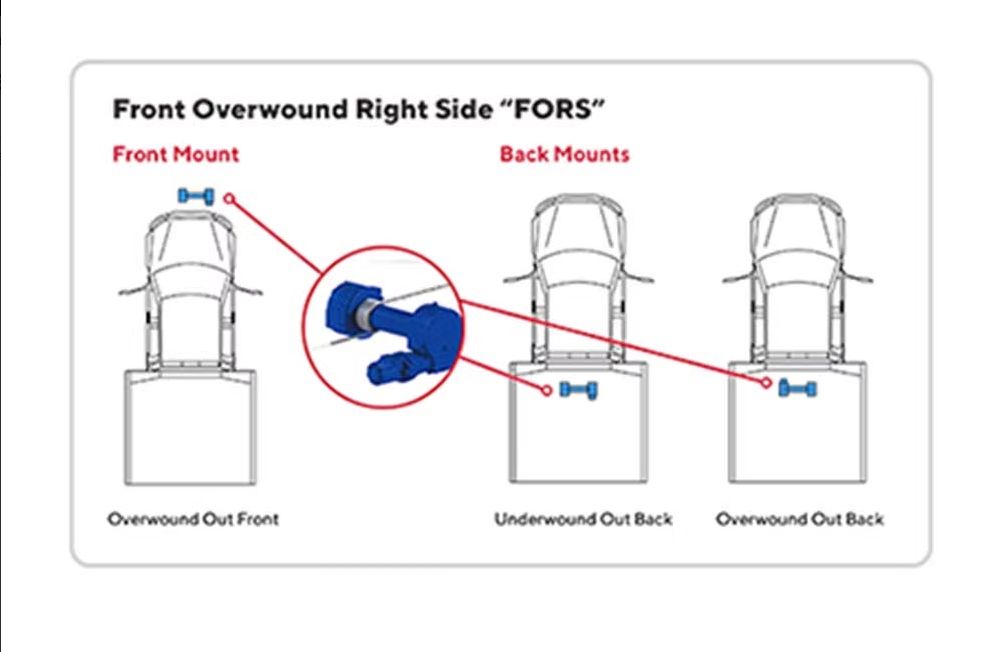

- Mounting Configuration: Front Overwind Right Side/Rear Overwind Left Side
- Gear Ratio: 46:1
- Motor Included: Yes
- Angles Included: Yes
- Drum Length: 6.175"+-/16"
- Adjustable/Automatic Brake: No
- Compact Short Drum
- Recommended Cable: 3/8"
- Meets SAE-J706
- Made in the USA
